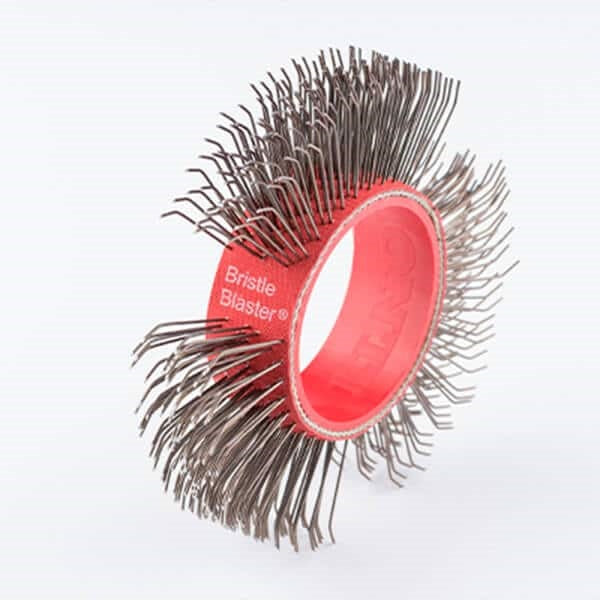

Bristle Blaster® Belt 23mm (10 pcs)
MontiPower® Technologies
Availability: In stock

Bristle Blaster® Belt 23mm (10 pcs)

Item code: BB-033-10

Price / quotation: Price on quotation

Price subject to discount on volume orders.

View quotation list (0) Talk to a specialist

Professional description

Patented 23 mm Bristle Blaster® belt for Sa 2.5 cleanliness and anchor profiles up to 120 µm Rz.

View on montipower.com — datasheets, manuals & belts

Key features

  • Carbon spring steel
  • 10 units per box
  • ATEX approved
  • Made in Germany

Technical specifications

Item codeBB-033-10
Belt colourRed
Belt width23 mm
Outer diameter110 mm
Inner diameter50 mm
Max speed4,000 rpm
Operating speed2,300 rpm
Required pressure6.2 bar | 90 psi
Weight60 g
Wire typeCarbon spring steel
ATEX approvalEx II 2G c IIA T4 X

Everything for the Bristle Blaster®

Belts, parts and documentation for this tool

Fits these tools

Genuine consumables and parts, matched to the tool family.

Belts & consumables

Steel belts for carbon steel, stainless for stainless and non-ferrous. Do not mix them. 23 mm for open areas, 11 mm for tight access.

All Belts & Brushes

Spare parts & accessories

Accelerator bars, adapters, hoods, regulators, batteries and cases. Genuine parts keep the warranty valid.

All spare parts

See it in action

Video library

Welcome to the world of Bristle Blasting

Bristle Blaster® vs conventional blasting

Getting ready for bristle blasting

Manuals & datasheets

All documents
Instruction manual · PneumaticPDF · EN Instruction manual · ElectricPDF · EN Bristle Blaster® belts, steelBB-033 / BB-034 Bristle Blaster® belts, stainlessBB-102 / BB-103 Belt Selector Preparation GuidePDF Bristle Blaster® Product BrochurePDF

Applications & sectors

Frequently asked

Product FAQ

What surface preparation grade and roughness can be achieved?
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The Bristle Blaster® removes corrosion and coatings and produces a cleanliness comparable to Sa 2½–3 with a roughness of 65–85 µm Rz on carbon steel with the standard belt; up to 120 µm Rz is achievable depending on belt and substrate."}]}]}
What factors affect the working speed of the Bristle Blaster®?
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The working speed depends on base material hardness, rust grades (A, B, C or D), existing coating thickness, scale layers and adhesive residues."}]}]}
What is the average service life of a Bristle Blaster® belt?
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"The average service life is approximately one hour, which covers about 1–1.5 m² of surface area."}]}]}
